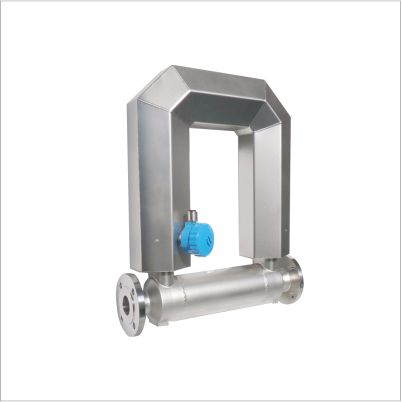

Model:CG-50 |
Coriolis meter CG-50, DN50mm, max. flow rate 1000kg/min, mass accuracy grade 0.2, has the character of wide application, convenient installation, high reliability, low maintenance, etc. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Technical parameters:
Model no. |
CG-50 |
Mass accuracy grade |
0.2 |
Max.flow rate |
1000kg/min |
Temp.accuracy |
±1°C |
Zero stability |
0.038kg/min |
Repeatability |
0.02% |
MWP |
4MPa |
Nominal diameter |
50mm |
End connection |
Customizable |
Fluid temperature |
-200~200°C |
Wetted parts |
Stainless steel 316L |
Sensor housing |
Stainless steel 304 |
RH |
≤95%,non condensed |
Pressure drop |
≤0.2MPa |
Ex-mark |
Ex[ib]IIBT1~T6 Gb / Ex[ib]IICT1~T6 Gb |
Atmospheric Pressure |
86~106kPa |
Operating Voltage |
AC85~265V,DC12~28V |
Communication port |
RS485Modbus RTU |
Packing |
1set/carton |
Package size |
970*950*600mm |
G.W. |
68kgs |
Warranty |
2 years |
|
